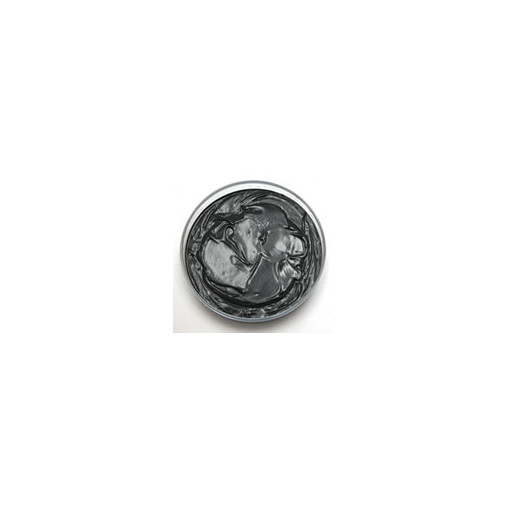

Non-Soap Greases
Non-Soap Greases
- Non-soap greases that use Bentone and other heat-tolerant inorganic compounds as thickeners.
- Little hardening/softening due to temperature change or dripping at high temperature.
- Excellent load bearing performance can be obtained by adding molybdenum disulfide (MoS2).
Recommended For bearings, gears, sliding parts, and the like operated under high temperature or heavy load conditions
Standard
| Product Name | NLGI (worked penetration) |
Appearance | Thickener | Base Oil | Kinematic Viscosity of Base Oil 40℃ |
Load Carrying Capacity by Soda Four-Ball Test 768rpm,1min |
Approximate Operating Temperature Range | Description |
|---|---|---|---|---|---|---|---|---|
| Moly Speed Grease |
No.2 （280） |
Black | Bentone | Mineral Oil | 95mm2/s | 0.44MPa | −25～ +120℃ | A Bentone grease formulated with molybdenum disulfide (MoS2) that has excellent wear resistance and anti-seizure properties. Can withstand momentary exposure to high temperatures up to 230 °C. |
| No.1 （325） |
||||||||
| No.0 （370） |
46mm2/s | |||||||
| Moly PS Grease |
No.2 （280） |
95mm2/s | 0.87MPa | A Bentone grease with a further enhanced anti-seizure property over Moly Speed Grease, made possible by the addition of an extreme pressure agent. | ||||
| No.1 （325） |
||||||||
| No.0 （370） |
46mm2/s | |||||||
| Molytone Grease |
No.2 （275） |
95mm2/s | 0.65MPa | A variant of Moly Speed Grease formulated with a high concentration of molybdenum disulfide (MoS2). It excels in wear resistance. |
||||
| No.1 （320） |
||||||||
| No.0 （370） |
46mm2/s | |||||||
| Molytone LM |
No.3 （235） |
95mm2/s | 0.88MPa | A variant of Moly Speed Grease formulated with an ultra-high concentration of molybdenum disulfide (MoS2). Ideal for anti-seizure and assembly lubrication applications. |
Heat Resistance
| Product Name | NLGI (worked penetration) |
Appearance | Thickener | Base Oil | Kinematic Viscosity of Base Oil 40℃ |
Load Carrying Capacity by Soda Four-Ball Test 768rpm,1min |
Approximate Operating Temperature Range | Description |
|---|---|---|---|---|---|---|---|---|
| Molytherm | No.2 （280） |
Black | Inorganic Compound | Mineral Oil | 517mm2/s | 0.49MPa | −10～ +200℃ | An inorganic grease formulated with a high concentration of molybdenum disulfide (MoS2) that has excellent wear resistance and anti-seizure properties. Its excellent heat resistance enables it to tolerate mo-mentary exposure to high temperatures up to 290 °C. |
| No.1 （325） |
||||||||
| No.0 （370） |
||||||||
| Moly Hightemp Grease |
No.1 （322） |
Bentone | Ester Oil | 320mm2/s | 0.49MPa | −15～+250℃ | An Bentone grease formulated with molybdenum disulfide (MoS2) and MCA. Has superior heat resistance to Molytherm, thanks to its synthetic oil base. | |
| High Moly Grease |
No.2 （275） |
Inorganic Compound | Polybutene | 15,000 mm2/s |
- | +100～+400℃ | An inorganic grease formulated with molybdenum disulfide（MoS2） and grafite. Switches to solid film lubrication at high temperatures courtesy of its low-residue synthetic base oil. | |
| No.1 （320） |
||||||||
| No.00 （415） |
370mm2/s |
